Challenger SA10 Car Lift

Challenger’s SA10 2-post lift offers 10,000 lb. capacity. You can install the SA10 in either symmetric or asymmetric position, depending on your service needs. The SA10 also features adjustable height and width options to further customize it to meet your needs. Innovative 3-stage front and 2-stage rear arms provide greater overall sweep.

For anyone living in the Kansas City Metro area Miller Tool offers installation and are willing to travel up to 100 miles away from the metro area with an additional 1.95/Mi. Miller Tool recommends that the products be installed in accordance with the Challenger installation instructions that accompany each product. If a Challenger product is not installed in accordance with the instruction manual, this may affect the Challenger warranty. The following Product installation services are provided at an additional cost.

ALI/ETL certified.

CALL FOR PRICING!

Description

Features and Benefits

10,000 lb. lift capacity
3-stage front arms provide greater sweep for versatility and ease of spotting
Can be installed in either symmetric or asymmetric position, depending on your service needs
Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
Adjustable heights and widths provide versatility at installation for service facilities with special constraints
Single-point mechanical lock release system allows technician to disengage both columns simultaneously
Padded overhead shut off system prevents vehicle damage
Premium powder coat finish provides long-lasting durability
Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage

Model Number	SA10	SA10
Lifting Capacity	10,000 lbs.	10,000 lbs.
Lifting Configuration	Symmetric	Asymmetric
Arms	3-stage front/2-stage rear	3-stage front/2-stage rear
Rise Height	74.5”	74.5”
Overall Height	136.5” / 142.5”	136.5” / 142.5”
Overall Height (Cylinder Extended)	142.5”	142.5”
2’ Height Extension Available	Yes	Yes
Overall Width	129” / 135”	131.5” / 137.5”
Drive-Thru Clearance	92.75” / 98.75”	88.5” / 94.5”
Floor to Overhead Switch	131.125” / 137.125”	131.125” / 137.125”
Front Arm Reach	22.375” / 41.5”	22.375” / 41.5”
Rear Arm Reach	38.25” / 59”	38.25” / 59”
Screw Pad Height	4.75” / 6.875”	4.75” / 6.875”
Inside Columns	106.75” / 112.75”	101.5” / 107.5”
Motor / Voltage	2HP, 208v-230v, 60Hz, 1Ph	2HP, 208v-230v, 60Hz, 1Ph
Speed of Rise	43 s	43 s
Ceiling Height Required	12’	12’
ALI/ETL Certified	Yes	Yes
Colors Available	Red, Blue	Red, Blue

Description

You may also like…

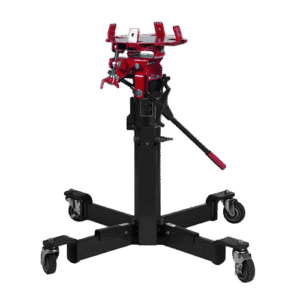

Challenger Hi-Rise Transmission Jacks – CLHM-HTJ-1000
